결과물

이제 Hand 메시에 물리 효과를 적용해서 오브젝트를 통과하지 않게끔 구현했습니다. 결과물을 보시면 가상의 메시는 뚫고 있지만, 실제 Hand 메시는 오브젝트를 뚫지 않고 막히는 모습을 확인할 수 있습니다.





구현 내용

1. AVRHand.h / .cpp

새롭게 SceneComponent 를 추가해서 기존 Hand 메시를 MotionController 로부터 분리시켰습니다. 그리고 가상의 Hand 메시를 MotionController의 자식으로 추가해서 PhysicsConstraint 로 기존 Hand 메시가 가상의 Hand 메시를 따라다니도록 구현했습니다.
기존 Hand 메시에는 Physics Asset을 추가해서 물리 효과를 구현했고, **SetAllBodiesBelowSimulatePhysics**와 **SetAllBodiesBelowPhysicsBlendWeight**을 통해서 물리 효과와 애니메이션 사이의 적절한 보간 비율을 설정해주었습니다.

AVRHand.h

더보기
#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "VRHand.generated.h"

class UPhysicsConstraintComponent;
class IGrabbable;
struct FInputActionValue;
class UVRHandAnimInstance;
class UInputAction;
class USphereComponent;
class UWidgetInteractionComponent;
class UMotionControllerComponent;

UCLASS()
class VIRTUALREALITY_API AVRHand : public AActor
{
	GENERATED_BODY()

public:
	AVRHand();
	virtual void OnConstruction(const FTransform& Transform) override;
	virtual void PostInitializeComponents() override;
	virtual void BeginPlay() override;
	virtual void Tick(float DeltaSeconds) override;

public:
	void SetupPlayerInputComponent(UInputComponent* PlayerInputComponent);


// Action Binding Function Section
protected:
	// HandGraspAction Binding Function
	void DoHandGrasp(const FInputActionValue& InValue);
	void StopHandGrasp();

	// HandIndexCurl Binding Function
	void DoHandIndexCurl(const FInputActionValue& InValue);
	void StopHandIndexCurl();

	// HandPoint Binding Function
	void DoHandPoint();
	void StopHandPoint();

	// HandThumbUp Binding Function
	void DoHandThumbUp();
	void StopHandThumbUp();

	// GrabAction Binding Function
	void GrabObject();
	void ReleaseObject();

private:
	/** 애니메이션과 물리 엔진의 비율을 설정하는 함수입니다. */
	void UpdateHandPhysicsBelow(FName InBoneName, bool bNewSimulate, float InBlendWeight);


// Component Section
protected:
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "변수|컴포넌트")
	TObjectPtr<USceneComponent> Root;

	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "변수|컴포넌트")
	TObjectPtr<UMotionControllerComponent> MotionController;

	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "변수|컴포넌트")
	TObjectPtr<USkeletalMeshComponent> HandMesh;

	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "변수|컴포넌트")
	TObjectPtr<USkeletalMeshComponent> VirtualHandMesh;

	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "변수|컴포넌트")
	TObjectPtr<UPhysicsConstraintComponent> PhysicsConstraint;

	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "변수|컴포넌트")
	TObjectPtr<UWidgetInteractionComponent> WidgetInteractionComponent;

	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "변수|컴포넌트")
	TObjectPtr<USphereComponent> GrabCollision;


// Input Section
protected:
	UPROPERTY(EditDefaultsOnly, BlueprintReadOnly, Category = "변수|입력")
	TObjectPtr<UInputAction> HandGraspAction;

	UPROPERTY(EditDefaultsOnly, BlueprintReadOnly, Category = "변수|입력")
	TObjectPtr<UInputAction> HandIndexCurlAction;

	UPROPERTY(EditDefaultsOnly, BlueprintReadOnly, Category = "변수|입력")
	TObjectPtr<UInputAction> HandPointAction;

	UPROPERTY(EditDefaultsOnly, BlueprintReadOnly, Category = "변수|입력")
	TObjectPtr<UInputAction> HandThumbUpAction;

	UPROPERTY(EditDefaultsOnly, BlueprintReadOnly, Category = "변수|입력")
	TObjectPtr<UInputAction> GrabAction;


// Variable Section
protected:
	UPROPERTY(EditDefaultsOnly, BlueprintReadOnly, Category = "변수|손")
	EControllerHand HandType;

	UPROPERTY(EditDefaultsOnly, BlueprintReadOnly, Category = "변수|손")
	uint8 bMirrorAnimation : 1 = false;

	UPROPERTY(EditDefaultsOnly, BlueprintReadOnly, Category = "변수|손")
	FName BoneName;



// Cached Section
private:
	UPROPERTY()
	TObjectPtr<UVRHandAnimInstance> AnimInstance;

	TScriptInterface<IGrabbable> CurrentlyGrabbedActor;

	FVector LastLocation;
	FVector CurrentCalculatedVelocity;

public:
	FORCEINLINE FVector GetHandVelocity() const { return CurrentCalculatedVelocity; }

};



AVRHand.cpp

더보기
#include "VRHand.h"
#include "EnhancedInputComponent.h"
#include "InputActionValue.h"
#include "MotionControllerComponent.h"
#include "VirtualReality.h"
#include "Animation/VRHandAnimInstance.h"
#include "Components/SphereComponent.h"
#include "Components/WidgetInteractionComponent.h"
#include "Define/Define.h"
#include "Interface/Grabbable.h"
#include "PhysicsEngine/PhysicsConstraintComponent.h"


AVRHand::AVRHand()
{
	PrimaryActorTick.bCanEverTick = true;

	// SceneComponent 초기화
	Root = CreateDefaultSubobject<USceneComponent>(TEXT("Root"));
	SetRootComponent(Root);

	// MotionController 초기화
	MotionController = CreateDefaultSubobject<UMotionControllerComponent>(TEXT("MotionController"));
	MotionController->SetupAttachment(Root);

	// 가상 HandMesh 초기화
	VirtualHandMesh = CreateDefaultSubobject<USkeletalMeshComponent>(TEXT("VirtualHandMesh"));
	VirtualHandMesh->SetupAttachment(MotionController);
	VirtualHandMesh->SetGenerateOverlapEvents(false);
	VirtualHandMesh->SetCollisionEnabled(ECollisionEnabled::QueryOnly);
	VirtualHandMesh->SetClothMaxDistanceScale(ECR_Overlap);

	// PhysicsConstraint 초기화
	PhysicsConstraint = CreateDefaultSubobject<UPhysicsConstraintComponent>(TEXT("PhysicsConstraint"));
	PhysicsConstraint->SetupAttachment(MotionController);

	// HandMesh 초기화
	HandMesh = CreateDefaultSubobject<USkeletalMeshComponent>(TEXT("HandMesh"));
	HandMesh->SetupAttachment(Root);
	HandMesh->SetSimulatePhysics(true);
	HandMesh->SetCollisionProfileName(FName("PhysicsActor"));

	// WidgetInteractionComponent 초기화
	WidgetInteractionComponent = CreateDefaultSubobject<UWidgetInteractionComponent>(TEXT("WidgetInteractionComponent"));
	WidgetInteractionComponent->SetupAttachment(HandMesh);

	// GrabCollision 초기화
	GrabCollision = CreateDefaultSubobject<USphereComponent>(TEXT("GrabCollision"));
	GrabCollision->SetupAttachment(HandMesh);
	GrabCollision->SetSphereRadius(15.0f);
	GrabCollision->SetCollisionEnabled(ECollisionEnabled::QueryOnly);
	GrabCollision->SetCollisionResponseToAllChannels(ECR_Ignore);
	GrabCollision->SetCollisionResponseToChannel(ECC_GRABBABLE, ECR_Overlap);
}

void AVRHand::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
	if (UEnhancedInputComponent* EIC = Cast<UEnhancedInputComponent>(PlayerInputComponent))
	{
		if (HandGraspAction)
		{
			EIC->BindAction(HandGraspAction, ETriggerEvent::Triggered, this, &AVRHand::DoHandGrasp);
			EIC->BindAction(HandGraspAction, ETriggerEvent::Canceled, this, &AVRHand::StopHandGrasp);
			EIC->BindAction(HandGraspAction, ETriggerEvent::Completed, this, &AVRHand::StopHandGrasp);
		}

		if (HandIndexCurlAction)
		{
			EIC->BindAction(HandIndexCurlAction, ETriggerEvent::Triggered, this, &AVRHand::DoHandIndexCurl);
			EIC->BindAction(HandIndexCurlAction, ETriggerEvent::Canceled, this, &AVRHand::StopHandIndexCurl);
			EIC->BindAction(HandIndexCurlAction, ETriggerEvent::Completed, this, &AVRHand::StopHandIndexCurl);
		}

		if (HandPointAction)
		{
			EIC->BindAction(HandPointAction, ETriggerEvent::Started, this, &AVRHand::DoHandPoint);
			EIC->BindAction(HandPointAction, ETriggerEvent::Canceled, this, &AVRHand::DoHandPoint);
			EIC->BindAction(HandPointAction, ETriggerEvent::Completed, this, &AVRHand::StopHandPoint);
		}

		if (HandThumbUpAction)
		{
			EIC->BindAction(HandThumbUpAction, ETriggerEvent::Started, this, &AVRHand::DoHandThumbUp);
			EIC->BindAction(HandThumbUpAction, ETriggerEvent::Canceled, this, &AVRHand::DoHandThumbUp);
			EIC->BindAction(HandThumbUpAction, ETriggerEvent::Completed, this, &AVRHand::StopHandThumbUp);
		}

		if (GrabAction)
		{
			EIC->BindAction(GrabAction, ETriggerEvent::Started, this, &AVRHand::GrabObject);
			EIC->BindAction(GrabAction, ETriggerEvent::Canceled, this, &AVRHand::ReleaseObject);
			EIC->BindAction(GrabAction, ETriggerEvent::Completed, this, &AVRHand::ReleaseObject);
		}
	}
}

void AVRHand::OnConstruction(const FTransform& Transform)
{
	Super::OnConstruction(Transform);

	switch (HandType)
	{
		case EControllerHand::Left:
			MotionController->MotionSource = FName("Left");
			BoneName = FName("hand_l");
			break;
		case EControllerHand::Right:
			MotionController->MotionSource = FName("Right");
			BoneName = FName("hand_r");
			break;
		default:
			break;
	}
}

void AVRHand::PostInitializeComponents()
{
	Super::PostInitializeComponents();

	AnimInstance = Cast<UVRHandAnimInstance>(HandMesh->GetAnimInstance());
}

void AVRHand::BeginPlay()
{
	Super::BeginPlay();

	AnimInstance->bIsMirror = bMirrorAnimation;

	UpdateHandPhysicsBelow(BoneName, true, 0.15f);
}

void AVRHand::Tick(float DeltaSeconds)
{
	Super::Tick(DeltaSeconds);

	FVector CurrentLocation = MotionController->GetComponentLocation();
	CurrentCalculatedVelocity = (CurrentLocation - LastLocation) / DeltaSeconds;
	LastLocation = CurrentLocation;

	GEngine->AddOnScreenDebugMessage(-1, 0.0f, FColor::Green, FString::Printf(TEXT("Hand Speed: %.2f"), CurrentCalculatedVelocity.Size()));
}

void AVRHand::GrabObject()
{
	TArray<AActor*> OverlappedActors;
	GrabCollision->GetOverlappingActors(OverlappedActors);
	if (OverlappedActors.IsEmpty()) return;

	AActor* FirstActorUnderCollision = OverlappedActors[0];
	if (!FirstActorUnderCollision) return;

	CurrentlyGrabbedActor = TScriptInterface<IGrabbable>(FirstActorUnderCollision);
	if (CurrentlyGrabbedActor)
	{
		CurrentlyGrabbedActor->OnGrab(HandMesh, GrabCollision->GetComponentLocation());
	}
}

void AVRHand::ReleaseObject()
{
	if (CurrentlyGrabbedActor)
	{
		CurrentlyGrabbedActor->OnRelease(HandMesh);
		CurrentlyGrabbedActor = nullptr;
	}
}

void AVRHand::UpdateHandPhysicsBelow(FName InBoneName, bool bNewSimulate, float InBlendWeight)
{
	if (HandMesh)
	{
		HandMesh->SetAllBodiesBelowSimulatePhysics(InBoneName, bNewSimulate, true);
		HandMesh->SetAllBodiesBelowPhysicsBlendWeight(InBoneName, InBlendWeight, false, true);
	}
}


void AVRHand::DoHandGrasp(const FInputActionValue& InValue)
{
	const float ActionValue = InValue.Get<float>();

	AnimInstance->PoseAlphaGrasp = ActionValue;
}

void AVRHand::DoHandIndexCurl(const FInputActionValue& InValue)
{
	const float ActionValue = InValue.Get<float>();

	AnimInstance->PoseAlphaIndexCurl = ActionValue;
}

void AVRHand::DoHandPoint()
{
	AnimInstance->PoseAlphaPoint = 0.0f;
}

void AVRHand::DoHandThumbUp()
{
	AnimInstance->PoseAlphaThumbUp = 0.0f;
}

void AVRHand::StopHandGrasp()
{
	AnimInstance->PoseAlphaGrasp = 0.0f;
}

void AVRHand::StopHandIndexCurl()
{
	AnimInstance->PoseAlphaIndexCurl = 0.0f;
}

void AVRHand::StopHandPoint()
{
	AnimInstance->PoseAlphaPoint = 1.0f;
}

void AVRHand::StopHandThumbUp()
{
	AnimInstance->PoseAlphaThumbUp = 1.0f;
}





2. Physical Asset

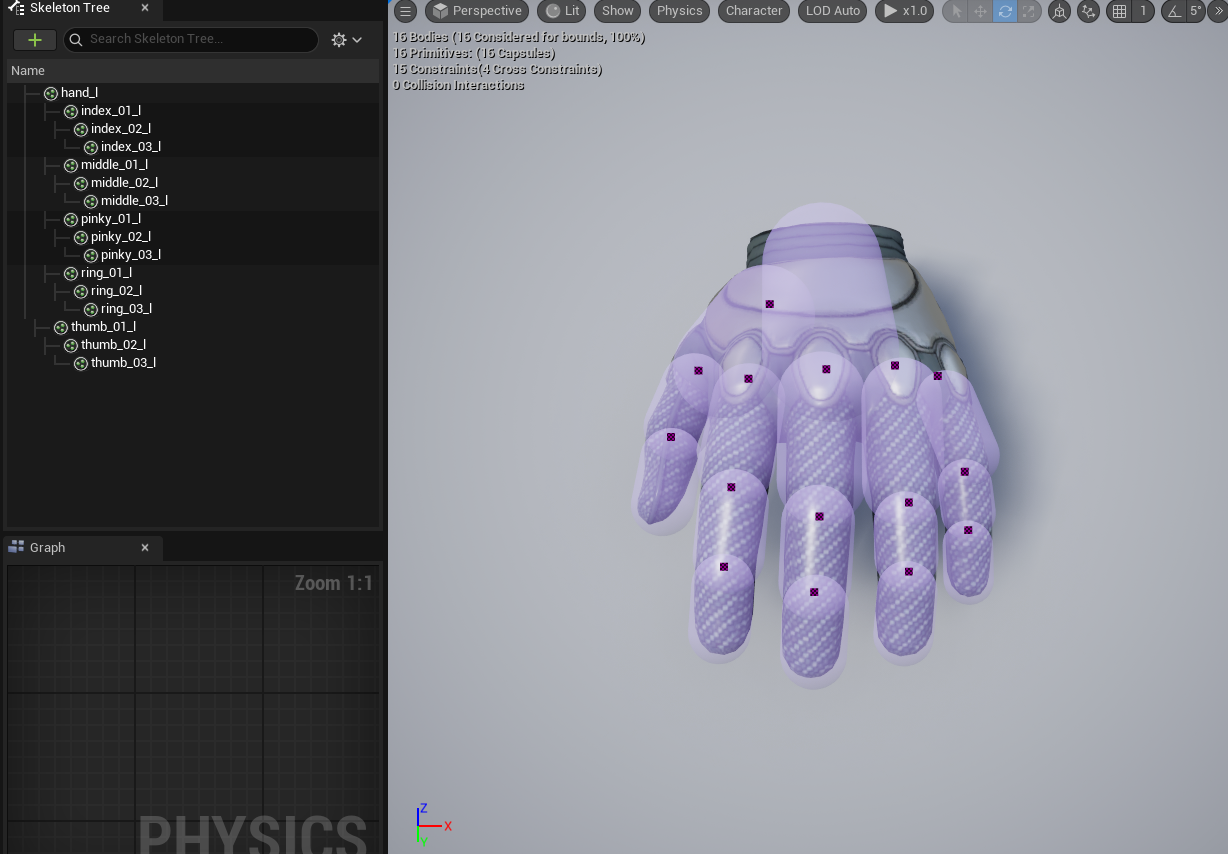

손가락 관절마다의 Constraint 를 추가해서 정밀한 물리 효과를 구현하고자 했습니다.





3. PhysicsConstraintComponent

PhysicsConstraintComponent의 속성 값은 다음과 같이 설정해주었습니다.

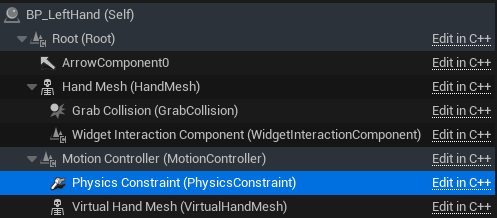

VRHand 컴포넌트 계층 구조
Constraint 설정
Limits 및 Motor 설정





마무리

손의 물리 엔진을 구현하고나니 오브젝트와의 상호작용이 훨씬 자연스러워졌습니다. 이제 남은 건 Procedural Grip 기능인데, 며칠동안 찾아봐도 C++을 활용해서 구현한 사례는 전혀 없고, 오직 블루프린트 강의만 있는 상태라 쉽지가 않네요 .. 그래도 완성될 결과물을 생각해서라도 열심히 해봐야겠습니다 ! ㅎㅎ 화이팅입니다 ~
